Roboto Eurorack Module PCB Set - Robot Voice Changer for DIY Synth Projects | PCBs, Panel, ICS & Vactrol Included | Perfect for Electronic Music Production & Sound Design

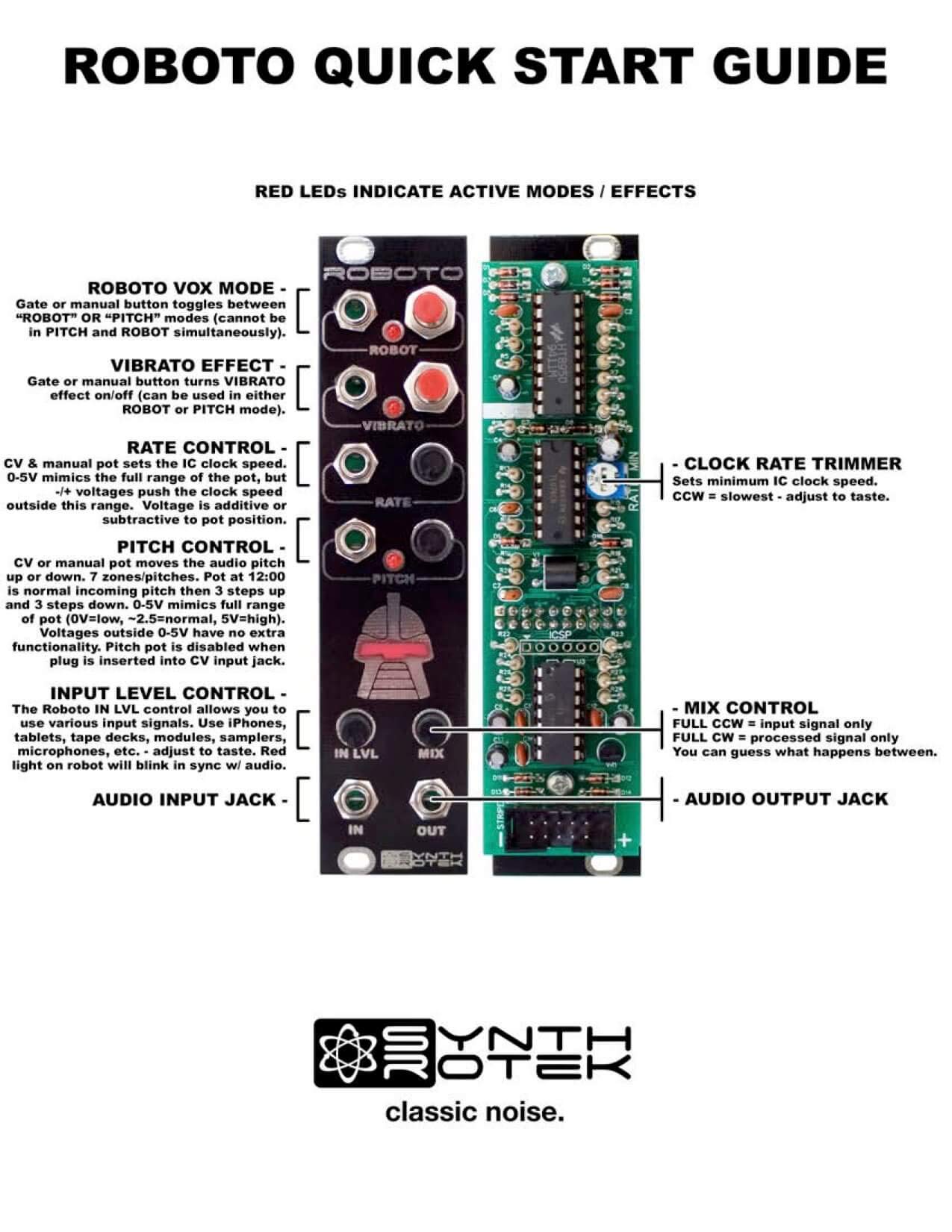

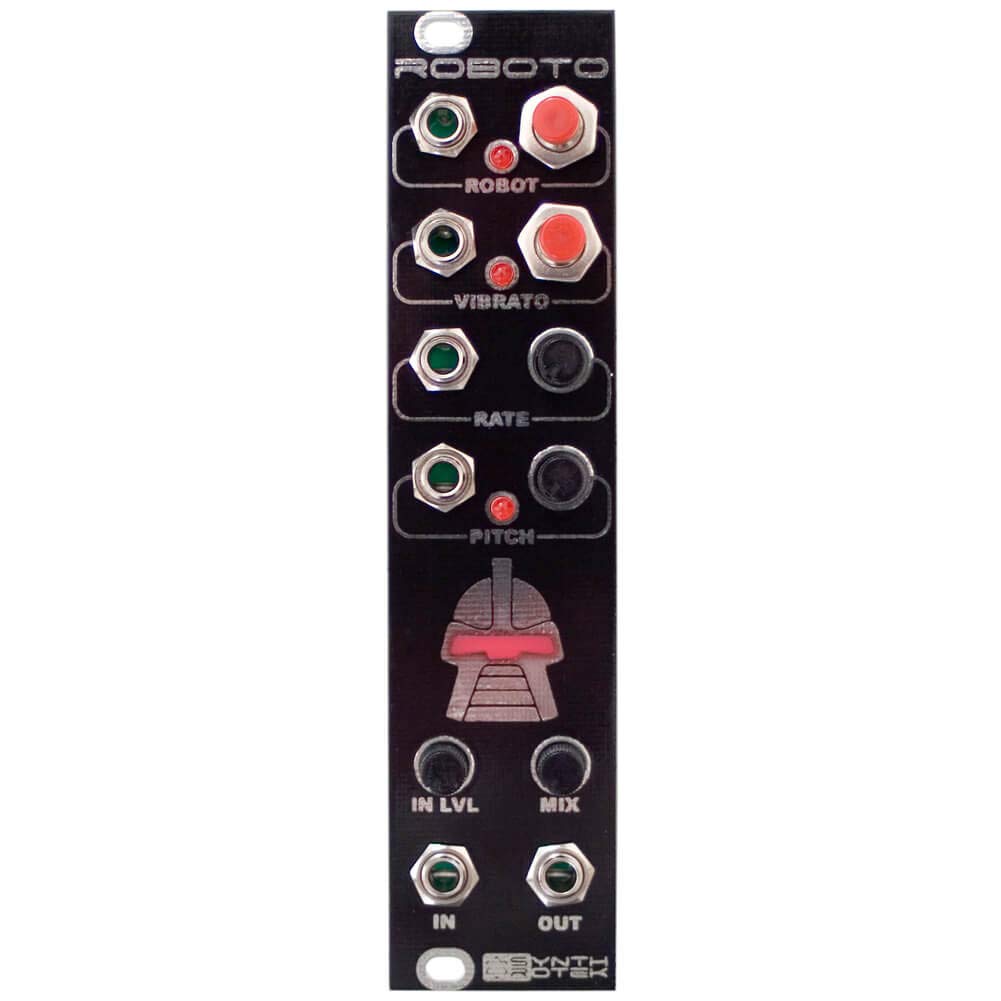

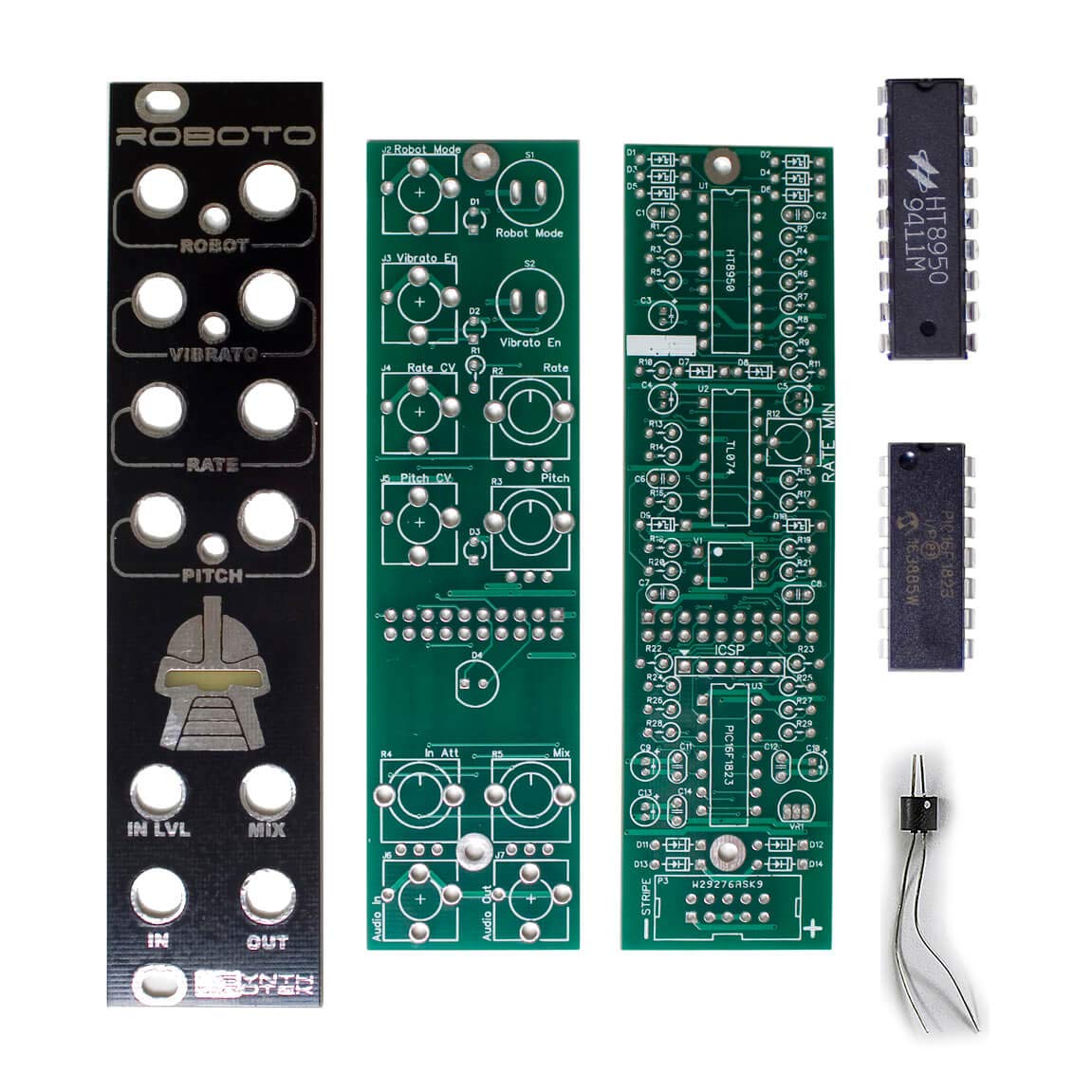

The PCB set of the Roboto Module. Please note: you will need to source the remaining parts needed to build this module. Assembly instructions and BOM are available online.Need a vocoder, pitch shifter, speak-n-spell effect, vibrato, 8-bit modulator and a bit crusher sounding module all in a lo-fi heavily CV controllable package? The Roboto module is all these and more (and it has a Cylon looking graphic that lights up).Features:Can be in either Robot mode or Pitch mode, but not both. Handy LEDs tell you which mode you're in. The ROBOT button toggles between the two.Vibrato toggles on and off. Works in either Robot mode or Pitch mode.Robot and Vibrato CV inputs activate those modes (and deactivates in the case of vibrato) upon receiving a gate pulse. Gate pulses in these inputs are just like pushing their corresponding buttons. Transition between what is considered "off" and "on" is at approximately 2.3V.Rate pot/input control the clock speed in the chip. A CV input of 0-5V will mimic the range of the pot, but voltages outside of this range will push the rate setting further.The CV input is mixed with the voltage coming from the pot.The pitch pot is used to pitch the audio up or down when in pitch mode. It has 7 zones/pitches; 12:00 is normal pitch, and there are 3 steps up and 3 steps down from there.0-5V fed into the Pitch jack mimic the full travel of the pot (0V is lowest, 5V is highest, normal is ~2.5V). Voltages outside this range are tolerated but won't provide any added functionality.The pitch pot is disabled when a plug is inserted into the CV jack.Roboto is fun at parties.IN LVL adjusts the level of the incoming signal.MIX:CCW=input signal onlyCW=processed signal onlyCurrent Draw:+12v @ 65mA-12v @ 15mA+5v @ 0mADepth: 34.5mm (1.36in)
